Overview

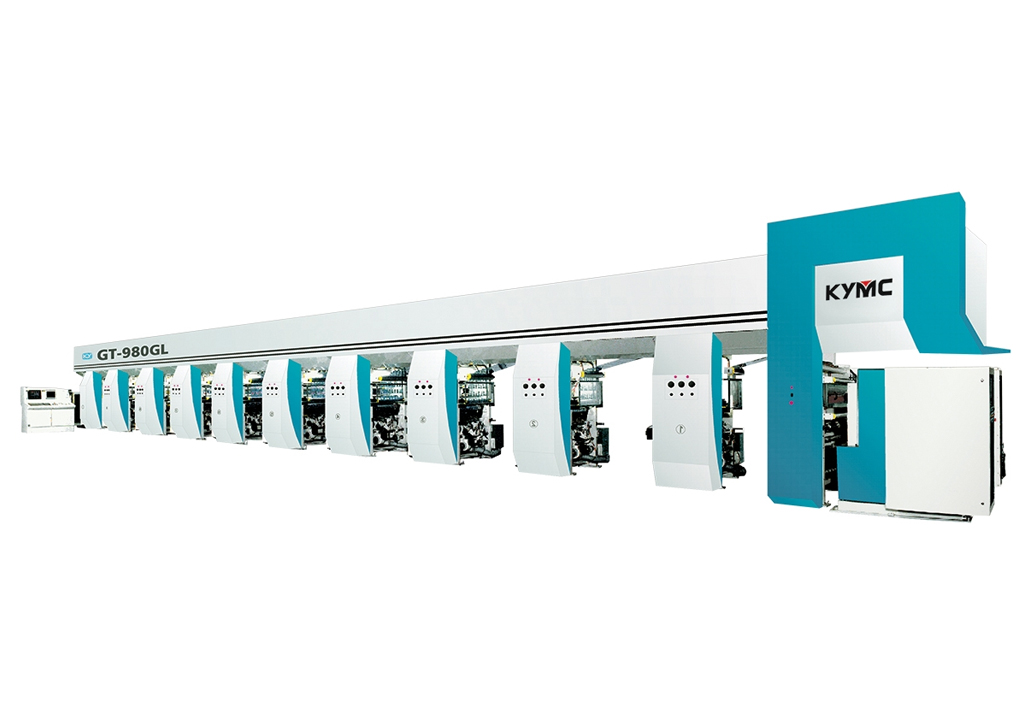

GT (The Servo Driven Press)

The GT press machine is highly automated with servo drive on each print station. This servo driven rotogravure press is designed to combine rotogravure printing quality with short change over times, low waste levels and easy operation. The press is highly automated with servo drive on each print station. Equipped with automatic reel change with flying splice capability at maximum press speed. The GT press is designed for;

Operator Comfort

Trolley designed printing station

Touch screen interface

User friendly layout screen control

Easy access to printing stations

Print Quality

Servo motor control guarantee excellent print registration holding

Rigid cast iron machine frame

Automated registration control

Adjustable doctor blade in 3 directions

Rigid doctor blade design with pneumatic lock ensures absolute ink transfer uniformity

Fault diagnosis on main drive control

Quick job Change

Job memory for repeat tasks

shaftless Chucking System for print cylinder and sleeve type impression rollers

Auto pre-register control

Remote Service Assistance

24/7 machine online diagnostic system

Exclusive PLC Network Connection Technology to achieve deep online diagnose and prompt remote-maintenance.

Industry 4.0

OPC UA Data Exchange Protocol for communication between devices, machines and enterprise systems (ERP, SCADA, CRM…etc)

Remote HMI monitoring via mobile devices

Safety

Compliant with Conformité Européene or Australian Standard

Certification service available with CSA, NEC and IEC

Available for CO2 nozzles in printing unit and drying tunnels

Applications

Paper

Food packaging, Pre-print for paper box, Bags, Paper cup, Liquid & beverage, Household cleaning, Cosmetics, Gift wraps, Wallpaper, Paperboard

Film

Food packaging, Industrial packaging, Bags, Liquid & beverage, Household cleaning, Cosmetics, Confectionary wrappers

Aluminium

Food packaging, Industrial packaging, Wine capsule, Foil containers

Woven bag

Substrate

BOPP 16 ~ 60 µm

PET 25 ~ 60 µm

BOPA 16 ~ 60 µm

LDPE suitable for printing 60 ~ 300 µm

Cellophane 30 ~ 60 g/m²

Paper and Laminates 80 ~ 230 g/m²

Specifications
