Overview

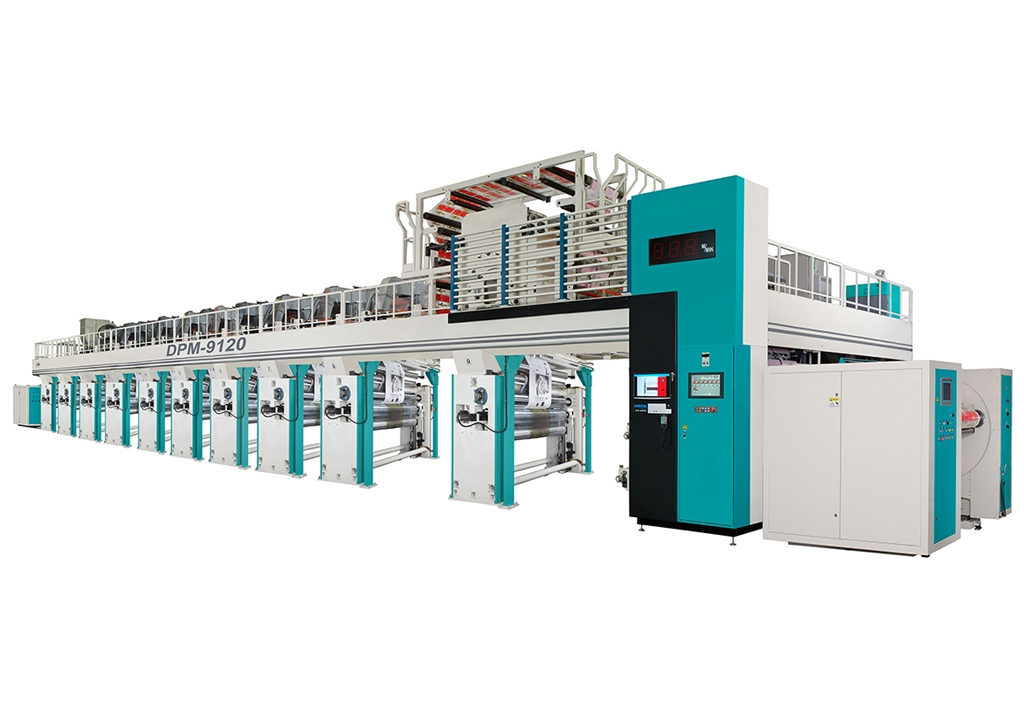

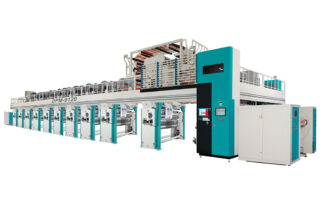

DPM (The Shaft Driven Press)
The DPM shaft driven rotogravure press is an economical solution for gravure printers. This is the basic model in the rotogravure class. The press is driven by shaft for the registration control.If you are looking for a shaft driven rotogravure press, this is the press for you to customize.
The press is an economical solution for gravure printers. This is the basic model in the rotogravure class. The press is driven by shaft for the registration control. The DPM press is designed for…
Operation Comfort
- Touch screen interface
- User friendly layout screen control
- Easy access to printing stations
- Automatic tension pre-setting
- Chain for web threading
Print Quality
- Rigid cast iron machine frame
- Adjustable doctor blade in 3 directions
- Rigid doctor blade design with pneumatic lock ensures absolute ink transfer uniformity
- Fault diagnosis on main drive control
Quick job Change
- Shaftless Chucking System for print cylinder
- Doctor blade easy accessible for cleaning and does not require additional tools for doctor blade changing
Safety
- Compliant with Conformité Européene or Australian Standard
- Certification service available with CSA, NEC and IEC
Applications
Paper
Food packaging, Pre-print for paper box, Bags, Paper cup, Liquid & beverage, Household cleaning, Cosmetics, Gift wraps, Wallpaper, Paperboard
Film
Food packaging, Industrial packaging, Bags, Liquid & beverage, Household cleaning, Cosmetics, Confectionary wrappers
Aluminum
Food packaging, Industrial packaging, Wine capsule, Foil containers
Woven bag
Specifications
| DPM Series | ||
| Number of Colors | 2 / 4 / 6 / 8 /10 /12 | |
| Max Machine Speed | m/min ft/min |
200 656 |
| Material Width | mm inch |
600 / 800 / 1000 / 1200 / 1300 / 1500 23.6 / 31.5 / 39.4 / 47.2 / 51.2 / 59 |
| Cylinder Face Width | mm inch |
700 / 900 / 1100 / 1300 / 1600 27.6 / 35.4 / 43.3 / 51.2 / 63 |
| Cylinder Diameter | mm inch |
100 ~ 285 3.9 ~ 11.2 |
| Reel Diameter | mm inch |
600 / 800 / 1000 23.6/ 31.5 / 39.4 |
| Drying System | Electric, Gas, Steam, Oil | |
| Infeed / Outfeed Unit | AC Vector |
